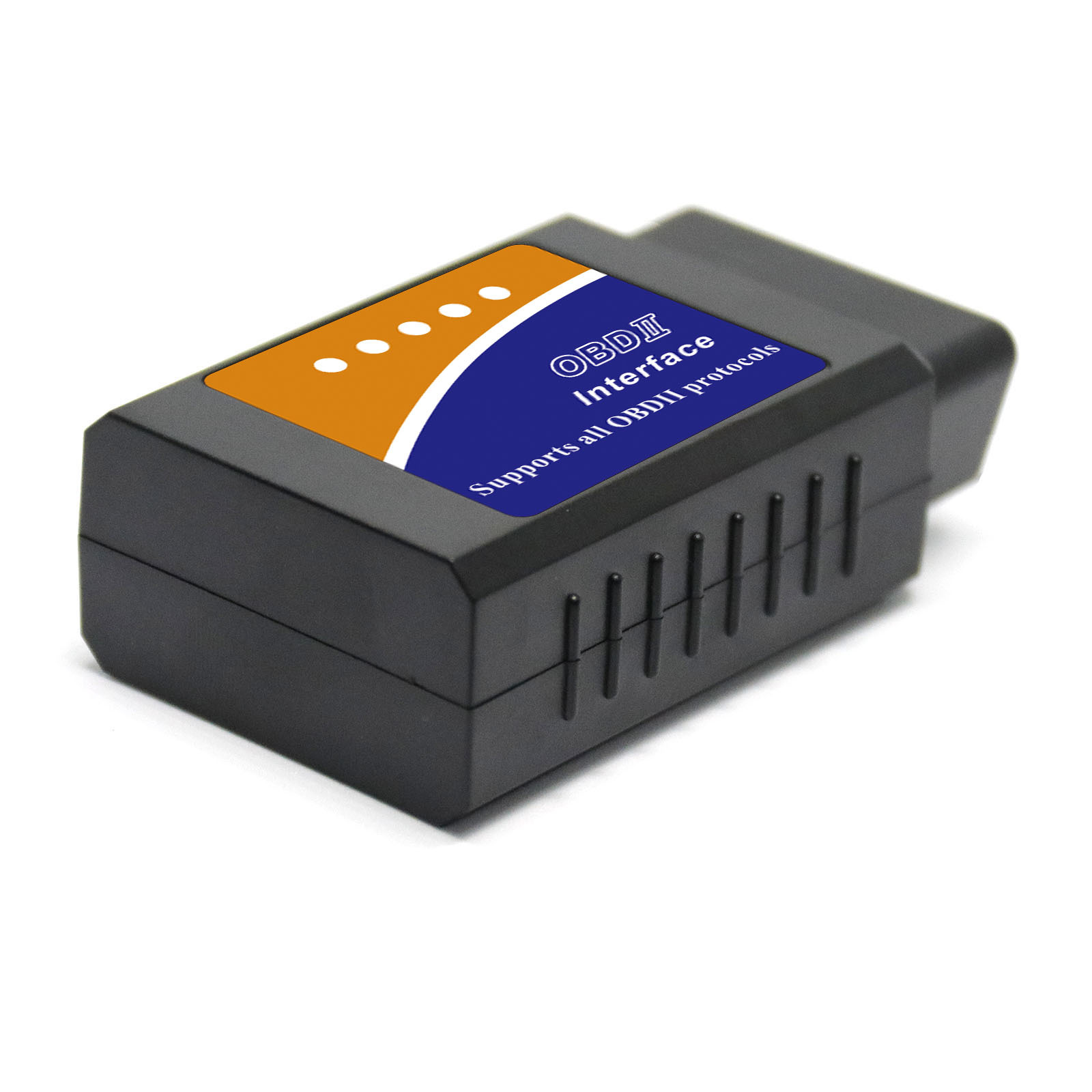

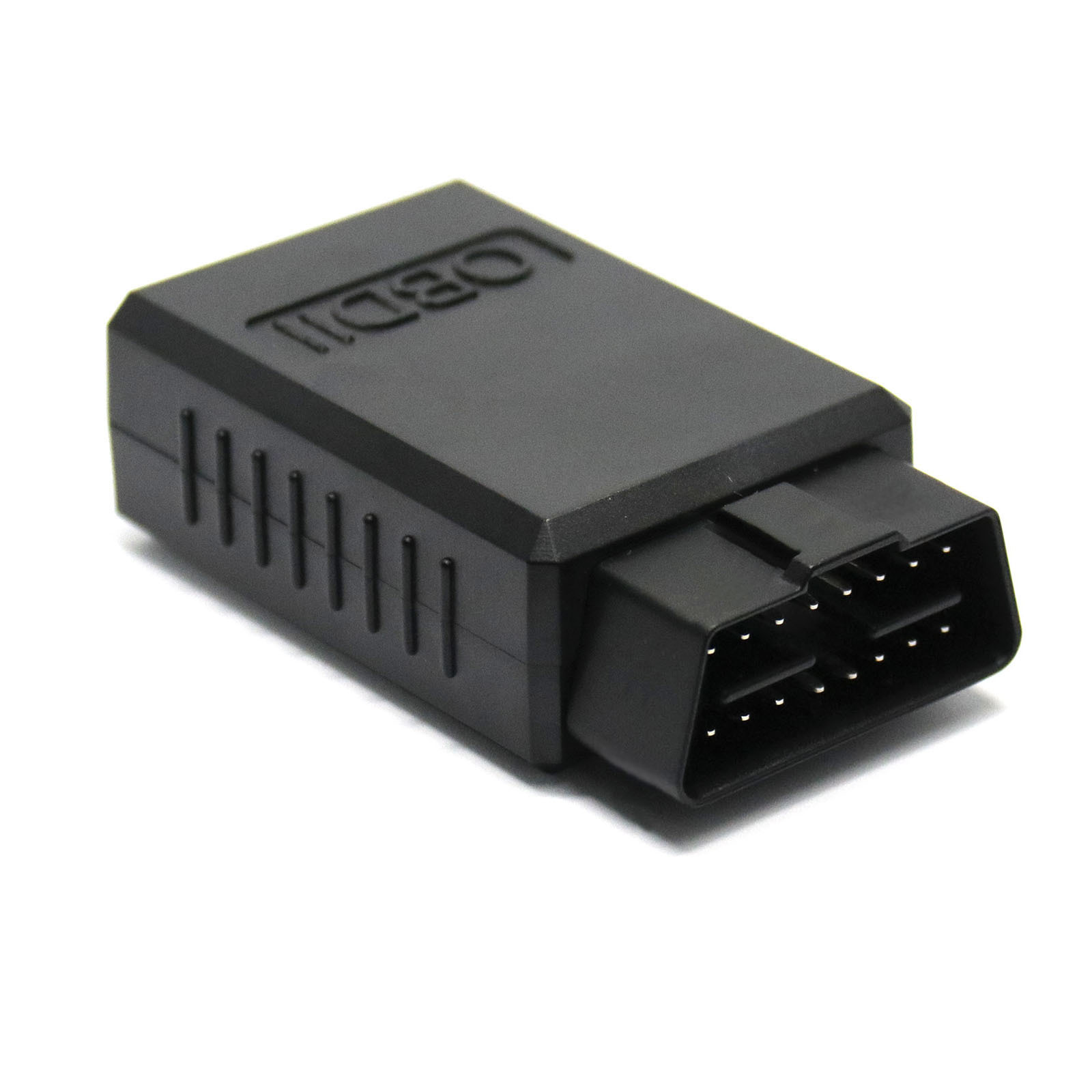

Bluetooth Elm327 OBD2 V1. 5 Car Tester Diagnostic Fault Scanner Tool

This  Bluetooth Elm327 OBD2 V1. 5 Car Tester Diagnostic Fault Scanner Tool can perform the following operations:

– Reads diagnostic error codes – both generic and manufacturer-specific – and displays their meaning (database has over 3000 generic code definitions)

– Clears the error code and turns off the MIL (Check Engine Light) to display current sensor data, including:

– Engine RPM Calculated load Coolant temperature Fuel system status Vehicle speed Short-term fuel conditions

– Long term fuel conditions Intake manifold pressure Injection advance time

– Inlet air temperature Air flow velocity

– Throttle absolute position Oxygen probe voltage associated with short-term fuel status Fuel system status Fuel pressure

– Fuel consumption monitoring has a lot of other data.

Compatible software

– Windows version: ScanMaster-ELM, ScanTool.net, PCMSCAN, etc.

– Android version: Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBDII, EOBD, etc.

– Symbian version: OBDScope

Compatible Platforms

Software support platforms: Windows XP, Windows 7/8 , Android, Symbian, ios and other systems.

OBDII supported protocols:

1. 1. SAE J1850 PWM (41.6Kbaud)

1. 2. SAE J1850 VPW (10.4Kbaud)

1. 3. ISO9141-2(5 baud init, 10.4Kbaud)

1. 4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

1. 5. ISO14230-4 KWP (fast init, 10.4 Kbaud)

1. 6. ISO15765-4 CAN (11bit ID, 500 Kbaud)

1. 7. ISO15765-4 CAN (29bit ID, 500 Kbaud)

1. 8. ISO15765-4 CAN (11bit ID, 250 Kbaud)

1. 9. ISO15765-4 CAN (29bit ID, 250 Kbaud)⊄•

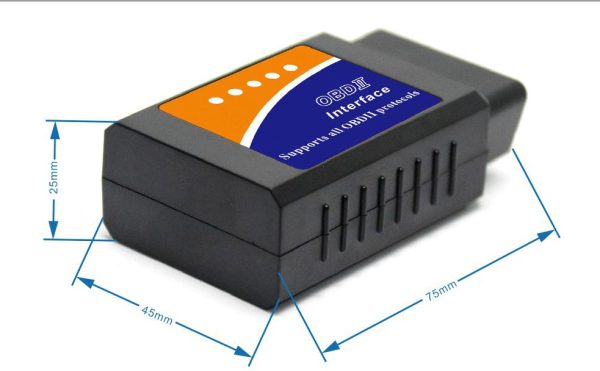

Product packaging size: 66mm X 26mm X 100mm
